Photo Coupler, IGBT, SSR光耦元件

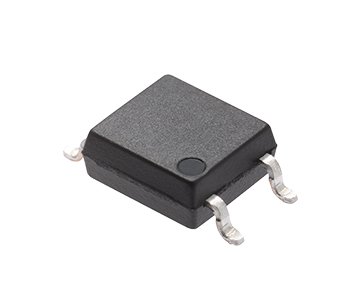

5Pin SOP-DC
The ELM452 and ELM453 devices each consist of an infrared emitting diode, optically coupled to a high speed photo detector transistor. A separate connection for the photodiode bias and output-transistor collector increase the speed by several orders of magnitude over conventional phototransistor couplers by reducing the base-collector capacitance of the input transistor. The ELM600, ELM601 and ELM611 are consists of an infrared emitting diode optically coupled to a high speed integrated photo detector logic gate with a strobable output. The devices are packaged in a 5-pin small outline package which conforms to the standard footprint.
產品特性
• 高速傳輸速率1Mbit/ s, 10Mbit/s
• 高CMR15KV/us在VCM =1500V
• 保證性能從-40°C至85°C
• 輸入和輸出之間的隔離電壓3750Vrms
• 小型封裝
• 無鹵素
• 無鉛化製程
• 符合 RoHS 規範
產品應用
•線路接收器
•通訊和控制
•功率晶體管隔離的驅動器
•低速光電晶體光耦合器
•高速邏輯隔離
•模擬信號隔離
